Trial Lens Set and Frame
| HE 0373 | Aluminium case, complete Power range, Prisms & other standard Accessories, in Full Diameter Coated Metal Rims with Cross Cylinders |  |
|
| HE 0374 | Illuminated Wooden Case, Powers up to +-20.00 D. Sph & +- 6.00 D.Cyl, Prisms & other standard Accessories, in Powder Coated Aluminium Rims |  |
|
| Power :- +- 20 D spherical - +- 6 cylindrical |
Cylindrical:- 80 pcs (+- 0.12 to +- 6.00) |
||
| Lens Type:- White |
Prisms:- 10 pcs (1/2 , 1 , 2, 3 ,4 , 5, 6 , 8, 10, 12) |
||
| Rings:- Light weight Powder coated rings that are color coded and marked |
Accessories:- pcs (Black, Red, Green, Slit, Pin Hole, White, Maddox) |
||
| Spherical:- 128 pcs (+-0.12 to +-20.00) |
Box:- Sunmica top, wooden top with the Self Illuminaon. Light is ‘ON’ as the Box is opened enabling the doctor to read the rim powers in Dark |
||
| HE 0377 | Leather Case, Powers up to +-16.0 D. Sph & +-4.0 D. Cyl , & other standard Accessories, in Powder Coated Aluminium Rims | |
| HE 0378 | Leather Case : Powers up to +-20.0 Sph. lenses only & other standard Accessories, in Powder Coated Aluminium Rims | |
| HE 0379 | Leather Case : Only basic spherical lenses (Up to +-16.0) & other standard Accessories, in Powder Coated Aluminium Rims | |
| HE 0380 | Leather Case, Powers up to +-20.00 D. Sph & +- 6.00 D.Cyl, Prisms & other standard Accessories, in Plasc Rims | |
| HE 0381 | Black Metal adjustable Trial frame (Adults) | |
| HE 0382 | Black Metal adjustable Trial frame (Child) |  |
| HE 0383 | Fully Adjustable Trial Frame |
 |
Vision Testing Charts
| HE 0384 | Ishiara book for color blindness test |
 |
| HE 0385 | Snellen Distance Vision Chart (English / E / C / Number) | |
| HE 0386 | WHO Distance Vision Screening Chart (English / E on opposite sides) | |
| HE 0387 | LogMar Distance Vision Chart, 4 meters : English/ E / C / Numbers | |
| HE 1253 | WHO Near Vision Screening Chart with Cord | |
| HE 0388 | Snellen Near Vision Chart (Set of 2) | |
| HE 1254 | Rossano Vision Chart | |
| HE 0414 | Stereo Fly Test | |
| HE 1256 | Lang Stereo Test Type 2 | |
| HE 0415 | Tangent Screen |

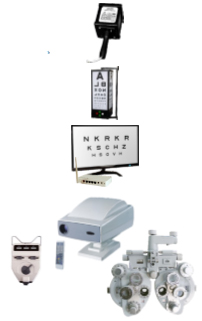

Vision Testing Equipments
| HE 0389 | Near Vision Testing Drum (Illuminated) |  |
| HE 0390 | Distance Vision Testing Drum: Illuminated, Manual Rotaon: Four Charts (6 Meters) Distance Vision Testing Drum: Illuminated, Remote controlled Motorized Rotaon | |
| HE 0391 | Four Charts (6 Meters) | |
| HE 0392 | Distance Vision Testing Drum:Remote controlled Motorized Movement of Screen | |
| HE 0393 | LCD Auto Chart System (with wireless handset) | |
| HE 0394 | Automated Chart Projector with IR controller, screen and wall mount | |
| HE 0416 | Digital IPD Meter | |
| HE 0395 | Sight Tester / Phoropter |

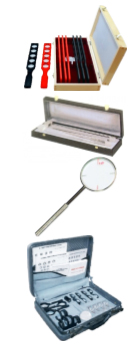

Vision Testing Accessories
| HE 0400 | Retinoscope Rack Set |
 |
| HE 0401 | Long Handle Maddox Rod | |
| HE 0402 | Long Handle Occluder | |
| HE 0403 | Long Handle Pin Hole | |
| HE 0404 | Occluder and Pin Hole (spectacle type, reversible) | |
| HE 0405 | Prism Bar Set (Horizontal and Vercal) with Two Spare Prisms | |
| HE 0406 | Prism Set (Loose) | |
| HE 0407 | Exophthalometer: Single Bar | |
| HE 0408 | Exophthalometer: Double Bar | |
| HE 0409 | Refraction Eye for Retinoscopy and Indirect Ophthalmoscopy | |
| HE 0410 | Model Eye | |
| HE 0411 | Cross Cylinder +0.25 | |
| HE 0412 | Cross Cylinder +0.50 | |
| HE 0413 | Cross Cylinder +1.00 | |
| HE 0494 | Diagnostic Pen Torch for 2 AA size baery | |
| HE 0495 | Diagnostic Pen Torch with blue filter | |
| HE 0496 | Diagnostic Torch for 2 D size battery | |
| HE 0497 | IOP Reducer (Ball Type) | |
| HE 0498 | Low Vision Kit in carrying case |
Auto-Refractometer and Auto RefKeratometer
Auto Ref-Keratometer is the best Optical Testing Instrument available at affordable pricing. Check out the features of this eye testing wonder
| 7'' LED Monitor |
| 18 Months Warranty |
| Automatic Pupil Tracking |
| Automatic Chinrest with Adjusting Mechanism |
| Elegant LED Backlight |
| PD Indicating Ruler and Leveller |
| Multi-Level Dial Type Locking System |
| Illumination Sensor |
| Gun-Type Joystick and Menu Controller |
| Auto-Tilt Screen |
MODEL
| Conventional Mode | REF KER REF/KER CLBC |
Refractometer Keratometer Refractometer with Keratometer Contact-lens base curve measurement |
| Special Function | PK ILLUM Size |
Peripheral Keratometer Retro – illumination function Cornea / Pupil size measurement |
| Refractometer |
Sphere Cylinder Axis Required minimum pupil |
-25.00 ~ +25.00D (VD 12mm) (0.01/0.12/0.25D Steps) 0 ~ + - 10D (0.01/0.12/0.25D Steps) 1~180 ° (1° Step) 2.0mm |
| Keratometer | Radius curvature Refractive power Astigmatism Astigmatic axis Peripheral measurement |
5.00 ~10.00mm (0.01 mm Step) 67.50-33.75D (n=1.3375)(0.01/0.12/0.25D Steps) 0~+-10D (0.01/0.12/0.25D Steps) 1~180° (1° Steps) 6.0mm 9r=7.8) |
| PD | Maximum | 88mm |
General Specification
| Size measurement | Cornea 0~12.9mm Pupil 0~12.9mm |
| Target chart | Auto fog system with scenery chart |
| Display | Tiltable wide 7 inch TFT LCD Luminance 400cd/m2 Resolution 800 x 480 pixels |
| Printer | Built in thermal printer with auto loading & auto cutter |
| Interface | RS – 232C (RX/TX), D-sub (video out out) |
| Dimension | 270 x 520 x 455 mm |
| Weight | Approx. 18kg |
| Power supply | AC 100-240V 50/60 Hz |
| Power Consumption | 60W |
Lensmeter
| Type:- | Ocular type external reading system. |  |
| Vertex Power Range:- | ± 25D step | |
| step upto:- | ± 10D : 0.25 D step beyond ± 10D: 0.5D |
|
| Cylindrical Axis Scale:- | 0 to 180° | |
| Prismatic Power Range:- | 5 in the view field (1 step) | |
| Target:- | Pins hole Corona | |
| Eyepiece Focusing:- | + 3D to - 5D | |
| Diameter of Lens:- | 30 to 80 mm Accommodated | |
| Tilting Angle:- | 30° to 90° | |
| Light Source:- | AC 220V, 3W LED Battery backup on 2 x 1.5v Dry cell | |
| Standard Accessorie:- | Contact lens holder, Two Spare bulbs, Dust cover |
OPHTHALMIC CHAIR & STAND UNIT HE 0398
Fully motorized unit for patient comfort.
Steered by a Latest technology Actuator & electronic control panel with Up/Down and flat horizontal inclination to full 180 degrees. Controls from Three Locations: The Main Panel on the Stand Unit, Foot Switch,Remote control on the chair. The chair rotates 180 degree axially and locks in any position as well. Inclines to a full 180° with upward and downward movement by motorized control.
| SPECIFICATIONS |
| AREA REQUIREMENT |
| 2410 mm. x 1360 mm. in Fully reclined position |
| 1770 mm. x 1360 mm. in erect position |
| Input voltage and power: 110/230 V |
| Output: 3V,6V,12V |
| Weight: 90 kg (Approx) |
| Optional: Left Sided Stand is also available./td> |
| Accessories:- |
| Surgeon Stool |
| Horizontal Vision Drum |
| Remote controlled |
