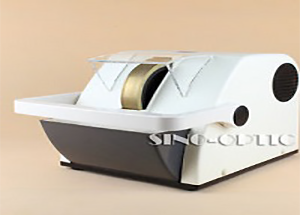

Diamond wheel edging machine
| Supply | 230V/50HZ |
| 230V/50HZ Consumption : | 150watts |
| Dimensions : | 330mm*270mm*230mm |
| Unit wt. : | 10 to 12kg |
| Wheel Dimensions : | 125mm*16mm*1.50mm |

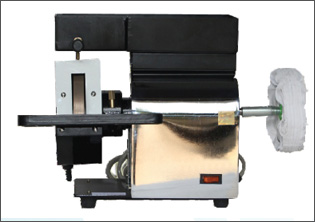

Diamond "V" groovmatic wheel edging machine
| Supply | 230V/50HZ |
| 230V/50HZ Consumption : | 150watts |
| Dimensions : | 330mm*270mm*230mm |
| Unit wt. : | 10 to 12kg |
| Wheel Dimensions : | 125mm*16mm*1.50mm with 'V' groove. |

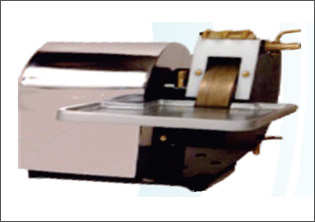

Master edging machine
| Supply | 230V/50HZ |
| 230V/50HZ Consumption : | 150watts |
| Dimensions : | 330mm*270mm*230mm |
| Unit wt. : | 10 to 12kg |
| Wheel Dimensions : | 125mm*16mm*1.50mm (10mm rough + 20mm smooth with 'V' groove). |

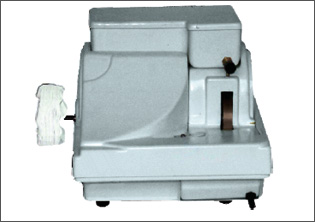

Decent edging machine
| Supply | 230V.50Hz. 1phase |
| 230V/50HZ Consumption : | 200 watts. |
| Dimensions : | 440mm x 300mm x 365mm |
| Unit wt. : | 24Kgs |
| Wheel Dimensions : | 150mm x 36mm x 2.00mm (6 inch wheel, 12mm rough + 24mm smooth with 'V' groove, Automatic water circulation). |

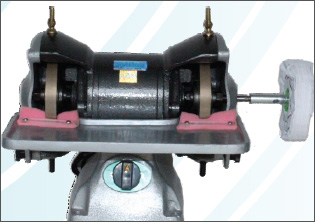

Double edging machine, Double Wheeled
| Supply | 230V.50Hz |
| 230V/50HZ Consumption : | 200 watts. |
| Dimensions : | 360mm x 320mm x 320mm |
| Unit wt. : | 18Kgs |
| Wheel Dimensions : | Left Wheel: 140mm x 16mm x 1.5mm Rough wheel Right Wheel: 140mm x 20mm x 1.5mm Smooth wheel with 'V' groove. |
Automatic Edging Machines

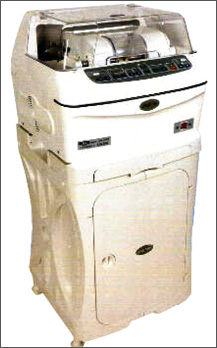

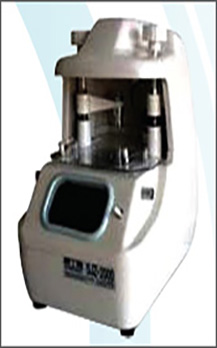

Auto Edger System
We Offer technology at an affordable price and also as a leader in the patterned edging system.
It is loaded with the latest technology. enabling it to be more speedy, stable and accurate. The advanced grinding wheels can edge any mineral lens or organic lens including poly-carbonate quite smoothly. It's friendly and personalized user interface makes any operator a skilled & professional eyeglass fitter. The elegant appearance and strong cost versus benefits make the it the most preferred Auto Edger worldwide.
| 8 bit microprocessor Controlling System. |
| 3 step automatic clamping pressure adjustable. |
| Selectable cutting Pressure. |
| Auto calibration system. |
| Unique design of guided bevel attachment. |
Specification
| Edging System:- | Pattemed guided |
| Worable Dia:- | Ø23 - Ø80 mm |
| Clamping Pressure:- | 0.5 - 0.78mp |
| Noise:- | 60db |
| Power Supply:- | AC 220-240V/50-60Hz/750 watts |
| Dimension:- | 500 x 780 x 420 |
| Table Height:- | 750 mm |
| Weight:- | 60 Kgs |
Centering Instrument
| Visible trans-illumination system |
| Convenient sliding plate |
| Power supply: 220V, 10W |

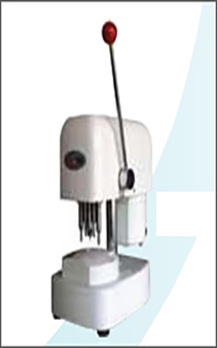

Demo Drill
| Simple for handling and easy for cleaning |
| Low noise and low vibration |
| Power supply : 220V, 50Hz, SOW |
