Operative Room Equipments

Vitrectomy

The portable unit for pneumatic vitrectomy procedures. Its robust and portable construction makes the device the ideal choice for surgeons that need to be mobile and work in ever-changing environments.

Advance Vitrectomy Machine

The objective of modern technology should be to adapt to human needs and fulfill individual requirements. The new vitrectomy system brings this philosophy to life with its intelligent technology concept and numerous innovative features. The vitrectomy system ensures maximum flexibility enabling surgeons to exercise their perfect surgical virtuosity in a very personal way.

VITRECTOR WITH INFUSION TUBE

Pneumatic vitrector for anterior vitrectomy procedures

VACUUM SYRINGE

Vacuum syringe for manually controlled tissue aspiration

Pneumatic vitrectomy without external air supply

Portable and robust construction

Quick and easy set-up

Footswitch activation

Compatible with most 20 PSI pneumatic vitrectomy cutters

Adjustable cutting speed from 1 – 800 cpm

Technical Data (Excerpt)

Dimensions (H x W x D) ..................................... 160 x 260 x 240 mm

Weight .............................................................................. 5.9 kg

System Requirements

Input Voltage ...................................... 115 VAC / 230 VAC Selector

Frequency .................................................................... 50 - 60 Hz

Vitrectomy

Functional Principle ...................................................... Pneumatic

Cutting Frequency ..................................................... 1 - 800 cpm

Nominal Pressure ................................................................ 20 PSI

High-Speed Vitrectomy

Wide selection of magnetic and pneumatic vitrectors

Traction-free surgery directly at the retina with the Uno Colorline vitrectors

Cutting rate up to 4,000 cpm

Small Incision Surgery

Optimized complete system for MICS and CMP

Device parameters perfectly tailored to micro-phaco accessories --Patented high-performance

accessories for biaxial and coaxial micro-phaco

Freely programmable footswitch with hot-switch function

Nearly limitless assignment of the 10 functions

Immediate switching between the device modes with the hot-switch function without releasing the footswitch

Linear, fixed and exponential control via bidirectional footswitch

User-interface design

Flexible customization of settings to suit individual needs

Individual programming of the single surgical steps with comfort set-value entry Up to 20 surgeons with up to 20 surgeries with 20 specific surgical steps storable

LAN remote diagnosis

Best technical support

Quick and efficient remote diagnosis

Easy connection with a standard LAN port

Bipolar Coagulator

Solid state circuitry

Foot switch operated

LED indicator for power output

Auto clavable silicone cords for use of forceps, erasers

A wide selection of Bipolar Forceps and Hemostatic

Erasers to facilitate most ophthalmic surgical procedures

Power supply AC 220-240 Volts / 110V ( On request)

Accessories

Two Bipolar forceps

Two silicone Bipolar cords

Phaco Emulsification system

Phaco Machine is a microprocessor-controlled ophthalmological system for the anterior and posterior eye segment. What is so special? With the phaco technique used, the emitted ultrasound energy is significantly reduced compared to the traditional pulse mode. It can therefore be used for the latest surgical techniques such as CMP and MICS.

Advance Phaco Emulsification System

The objective of modern technology should be to adapt to human needs and fulfill individual requirements. The new vitrectomy system brings this philosophy to life with its intelligent technology concept and numerous innovative features. The vitrectomy system ensures maximum flexibility enabling surgeons to exercise their perfect surgical virtuosity in a very personal way.

Small Incision Surgery

Optimized complete system for MICS and CMP

Device parameters perfectly tailored to micro-phaco accessories --Patented high-performance

accessories for biaxial and coaxial micro-phaco

Freely programmable footswitch with hot-switch function

Nearly limitless assignment of the 10 functions

Immediate switching between the device modes with the hot-switch function without releasing the footswitch

Linear, fixed and exponential control via bidirectional footswitch

User-interface design

Flexible customization of settings to suit individual needs

Individual programming of the single surgical steps with comfort set-value entry

Up to 20 surgeons with up to 20 surgeries with 20 specific surgical steps storable

LAN remote diagnosis

Best technical support

Quick and efficient remote diagnosis

Easy connection with a standard LAN port

Mega Tip

Highly efficient thanks to its unique and patented design

Emulsification inside the needle and not just at the tip

Perfect ultrasound efficiency: significant reduction in phaco power and time

Improved irrigation/aspiration balance

CMP line for perfect ultrasound switching with varying incision sizes

All features at a glance
Peristaltic Pumps
Precise vacuum control in all areas
Ideally suited for high-vacuum phaco ("magnetic" fragment aspiration)
Realistic Venturi effect with adjustable vacuum rise time
Real-time VAC Sensor
Real-time vacuum sensor and airless aspiration line for maximum anterior
chamber stability

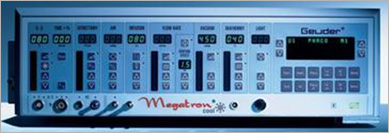

Megatron Footswitch
Dual-linear control
Flexible and individual programming
Almost all functions can be controlled via the footswitch
Ultrasound Handpieces
Constant power over the whole lifetime of the handpiece
Innovative and ergonomic handpiece for high efficiency and long lifetime
Suitable for phaco and endo-phaco
Mega Ultrasound Tips
Unique patented design
Multiple emulsification in phaco tip
Significant reduction in phaco power and surgery time
Optimized geometry ensures excellent fluidics
I/A
Extensive range of irrigation and aspiration handpieces
Optimized accessories for coaxial and biaxial phaco techniques
Improved anterior chamber stability
Light
Light port for connection of all current fiber optics
Halogen lighting with redundant lamp management

Binocular Operating Loupe

An enlarged view simplifies your work. What you can’t see you can’t work on. The advantages of binocular loupes are obvious:

Improved working posture, reduced strain on the eyes and an even clearer view with K-LED lighting.

2.0, 2.5x and 3.0x magnification.

The true benefit of this system is ease of use.

Movement whilst maintaining focal clarity is possible due to superior depth of field. The light-weight aluminium bar with individual pupillary adjustment provides the mounted loupes with stability and optimal focal alignment, eliminating headache and eyestrain.

Ideal for ocular and dental examinations as well as plastic surgery and veterinary professionals.

3.0x magnification.

With this system, we provides a high resolution loupe, which far surpases any previous standards. This 5-element loupe offers triple magnification with a 15% increased field of view and a visually flat field from edge to edge.

Designed for comfort and performance

Patient comfort

More distance during treatment makes patients feel visibly better and more relaxed.

Several magnification grades

The loupes perfoem in accordance with your requrements. Multiple magnification levels enable you to see more, spot problems earlier and offer even higher levels of precision treatment. Attachment options

Select between the light spectacle frame or the brow band system for the use of your loupes.

3,5x, 4,5x and 5,5x magnification.

Higher magnification for advanced surgical precedures. High prismatic quality ensures true image. Edge to edge clarity and precise color rendition are ideal for intricate applications.

The precision lenses are treated with non-reflecting protective coating to achieve an excellent image.

The K-LED brow lamp provides homogeneous light with a brightness of uo to 18.000 Lux. The 3W LED is coaxilly attached to the frame and operates with a li-ion battery pack, enabling permanwnt operation of up to approx. 4 hours.

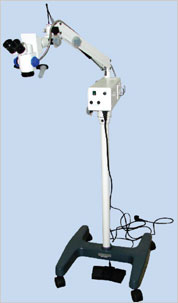

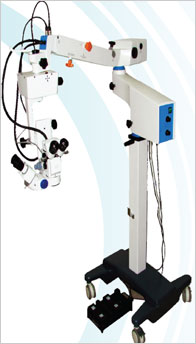

Operating Microscope

3 step magnification

Portable, three-step magnifications

Spring balance system in the arm ensures the microscope move freely. All of the lens are multi-coated, mildew proof and anti-reflection For optional objectives and other parts applicable to ENT, DENTISTRY, LAB and SURGERY please refer to the followings details.The whole microscope is smart, portable, specially suitable for mobile hospital.

Eyepiece Magnification 12.5x

Objective 200mm

Working Distance 190mm

Magnification for Main Microscope 5.3x, 8x, 12x

Diameter of Field 38mm, 25mm, 17mm

Adjustable Dioptor 5D

Adjustable Range for Pupil Distance 50mm-70mm

Illumination Source 12V/100W Cold Halogen Lamp

Illumination Type Coaxial Illumination

Coaxial Illumination 80000 Lux

Reaching Range of Arm 870mm

Adjustable Vertical Range 700mm-1100mm

Fine Focusing Range 30mm

Voltage AC220V/ 50Hz

Power 120VA

Safety Electrical Standard Conform to Standard IEC 601 -1.

Whole Packing Volume Class1 Type B

0.2m

Carton Number 1

Total Weight 41Kg

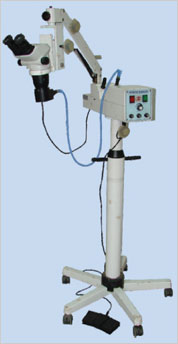

Stereo Zoom (Stereo Zoom Head & Fibre Optic)

Main Microscope Binoculars Optical

Head

Eye Pieces 10x

Inclination to vertical 45°

Interpupillary distance Adjustable from 52mm ~ 75mm

Zooming range 0.8~3.5x

Working distance 181mm

Field of view 52.5mm ~ 12mm Ø

Arms Counterbalanced Spring Arms

Horizontal length of arms 850mm

Vertical height adjustment Maximum 1465mm Minimum 905mm

Total magnification 4~17.5x Continuous without steps

Rotation of arms 320° with Lock

Dimensions of base Length 520mm, Breadth 520mm, Four castors wheels for easy handling, ensures absolute stability

Fine focusing Illumination Motorized foot control

Coaxial illumination Cold Light 15V and 150W

Light source Halogen Lamp twin bulb Fibre light guide system

Power Supply AC 220-240 Volts/110 (on Request)

Weight 55Kgs

POSTERIOR SEGMENT OPERATING MICROSCOPE

Operating Microscope (posterior segment) is an operation microscope with dual scopes of binocular sharing the same visual field. The main and assistant scope can be placed at 90°or 180°. It has got cold light source, retina protection device, strengthening red light reflection device and slit lamp. Its splitter system can be equipped with teaching, photograph and video and the adjustment of microscope is realized by foot switch.

"Five-step magnifications for main microscope, threestep magnifications for assistant microscope. "Lens made of imported glass from Germany can reduce the optical aberration. " All of the lens are multi-coated, mildew proof and anti-reflection "Equipped with three Objectives and being applicable to Ophthalmology, Orthopedic surgery and ENT. " Oblique illumination can be used for slitting and slitting width is adjustable. "X/Y movement can be automatically centered. "Inner Beam Splitter is mounted and can be connected to other outer displays.

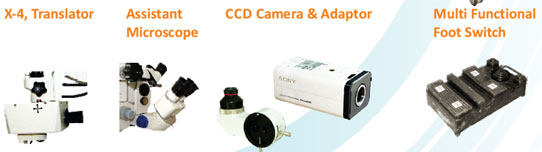

Accessories

Endo Lasers

The 532nm Endo Laser Photocoagulator built on the existing platform. The 532nm Endo Laser introduces new advancements in Diode Pumped Solid State (DPSS) laser cavity, and digitally controlled instant duty cycle electronics and software that permit the laser to be used at high power settings for extended periods of time. The 532nm Endo Laser has been especially designed for high activity use of the system, providing superior and reliable performance with ease of use, complemented by a large and flexible range of delivery choices, system configuration options and, still the unbeatable

Undistorted view having no safety filters in front of the objective lens.

50 ‐ 1000μm Continualy Variable Spot Size.

True Parfocal Beam Delivery for exceptional energy distribution.

Long working distance between slit lamp and patients eye.

Superior conveniently located Micromanipulator.

Laser System DPSS True CW
Safety Classification Class 4
Wavelength 532nm
Power Output 50mW - 2.0W & 50mW to 4.0W (ENT Optional)
Max Power at Cornea 2.0W (Enso, LIO & SLA @ all spot sizes)
Pulse Duration 0.01 - 3.0s
Pulse Interval 0.01 - 3.0 & Continuous
Cooling Auto Fan & TECs for Laser & Crystal
Treatment Spot Size 50 - 500µm Continuously Variable or Stepped
50 - 1000µm Continuously Variable (Integrated Version)
Aiming Beam Laser diode 653nm, red 0.1 - < mW
Safety Classification Class 2
Dimensions 79cm x 56cm x 36cm (LxWxH)
31" x 22" x 14" (LxWxH)
Weight 22Kg / 48 lb (system)
Power Requirements 100‐240 VAC, 50/60 Hz, Auto ranging

Endo Laser delivery device

EXTENSIVE RANGE OF LASER DELIVERY SYSTEMS

Green Laser comes with an extensive range of Slit Lamp Delivery Adapters (SLA) to suite, Zeiss, Haag-Streit (and clones), and LightMed Laser slit lamps. Parfocal 50- 50µm continuously variable spot size with or without micromanipulator option.
Excellent, uniform power density distribution over the treatment spot.
Superior safety filter optics providing enhanced view of the retina.
Automatic recognition of delivery devices and treatment modes, assures simple selection and safer application.

LASER INDIRECT OPHTHALMOSCOPE (LIO)

Keeler integrated LIO, provides unique controls of aperture size and spot position.
Lightweight and highly portable LIO.
Superior clarity safety filter lens for enhanced, undistorted viewing.
POWER CONTROLL FOOT PEDAL
The optional ergonomic design foot pedal enables easy positioning and adjustment of treatment power settings. Allows hands-free operation. Uninterrupted procedure for increased visual focus.
ENDO-OCULAR PROBES
Provides second 500 micron fiber for illumination source Fits most operating room light sources SMA 906 Fiber connector

Surgical Light

Surgical lights originate on the basis of the most modern lighting technology and under continuous quality control.

They can withstand the challenges of everyday medical practice in every way and perfectly support diagnosis and treatment

Now in an LED version with persuasive advantages!

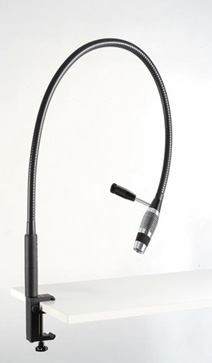

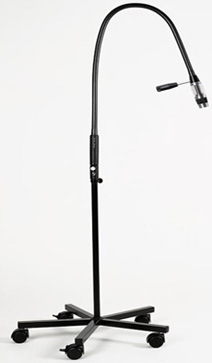

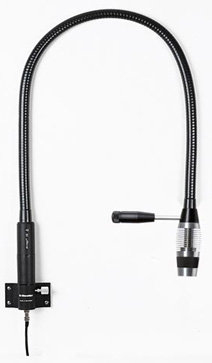

The flexible surgical light LED illuminates the examination and operation area in the best possible way.

The white focusable LED illumination offers more efficient diagnosis. Clearly distinguishable color nuances, stark contrasts, as well as high-performance lighting to enable a faster and easier diagnosis.

The LED offers cold light vs. the heat emission of halogen and xenon bulbs. Surgical light LED is available as a desk, wall or floor model. The floor model is supplied with a particularly steady, heavy and anti-static stand. Two of the five casters can be locked. The wall and desk models can be quickly and easily mounted on all conventional wall rails in clinics using the universal clamp.

The most modern LED technology with 228 lumen, similar to daylight and high-performance; ideal for examinations and smaller procedures.

Lifetime of the lamp up to 50,000 hours, replacements no longer necessary.

Significantly less heating and energy loss.

The focusing device at the front of the light head allows exact adjustment of the size of the illuminated examination area.

Highly flexible, long special arm can be bent in all directions, the light remains fixed in the chosen position.

Simple to use handle with rheostat for infinitely variable regulation of light intensity.

Wide-range power cord for 230V/120V.

Available with plugs to suit the electrical outlets in your country upon request.

LED provides ideal illumination of the examination area with a 40 cm distant, focusable, white and cold light with 5500 Kelvin and 7100 lux. The LED lamp employed has a life of approx. 15,000 hours and can be supplied with power using standard commercial AAA batteries, long-life lithium batteries or NiMH rechargeable batteries plus plug-in charger, so that no annoying power cord need be used during the examination.

Headband version, with built-in battery compartment and integral charge jack, can be optionally fitted with 2 lithium batteries size CR 123 A, 4 batteries size AAA (alkaline) or 4 rechargeable batteries size AAA (NiMH).

Headband cleaning made easy by inner, removable and washable padding.

Particularly comfortable with balanced, infinitely adjustable headband.

On/off switch on battery compartment.

Charge jack for plug-in charger integrated in battery compartment.

Focusable LED lamp at a distance of 40 cm approx. Ø 40 mm - Ø 200 mm, infinitely adjustable.

White LED, 1 Watt with 5.500° Kelvin, 6 V.

Battery operation: approx. 30 hrs. with lithium batteries, approx. 90 min. with alkaline batteries Type AAA.

Rechargeable battery operation: approx. 90 min. with fully charged battery.

Weight: 210 g without batteries, 242 g with CR 123 A lithium batteries, 259 g with rechargeable AAA batteries.

Delivery in carton.

Operating Room Furniture

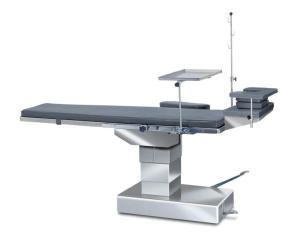

OPERATION TABLE

Fully Stainless Steel Rust Proof Motorized Table for Long Life

Body of the table made on Stainless Steel to provide bright ambience for the theater.

Movement controlled by Actuator System operated by Foot Switch as well. Two remotes on both side of the table. Unique, Spring Control Levelling for Tilting Positions. Adjustable Cushioned Head Rest Comfort for Operating. Adjustable Wrist Support provides comfort and Stability while operating.

Electronic Movements (Up & Down)
Minimum Height 600 mm
Maximum Height 900 mm
Stroke Length 300 mm

SPECIFICATIONS

Total length: 2010 mm
Width of Table: 550 mm
Total width: 720 mm
Base size: 1020 mm x 410 mm.
Head rest section: Removable & Full
rotation.
Removable Leg section
Power Source: 230 V A/C- 50 Hz.
Weight Capacity : 125 Kg.
Gross Weight 120 Kg.
SURGEONS OPERATING CHAIR

Comfortable surgeon chair to provide tireless support during surgery

Stainless Steel body to provide elegant exteriors while remaining rust proof for years together.

Movement controlled by Actuator System operated by Foot Switch regulated height adjustment range of 150mm Five antistatic castors with lock facility.

Circular base for foot support to provide stability to legs while operating.
Multi position arm support.
Seat foam made of High density
Polyurethane providing excellent seating
comfort to the surgeon.
Rotating seat with lock to adjust the chair
during surgery.

SPECIFICATIONS

Height: Actuator driven
Minimum 550mm - Maximum 700mm
Movement: 5 twin castors with lock
Power supply: 220V (50 / 60 Hz)
Lifting capacity: 180 Kgs Stroke value:
150mm
