Intra Ocular Lens/ET Ring

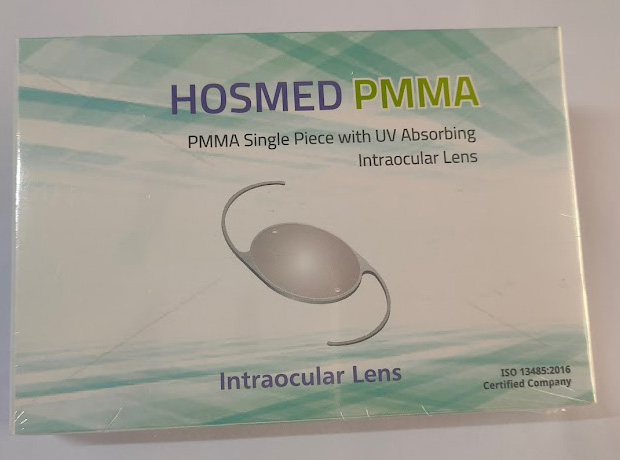

PMMA Intra Ocular Lens

Hospimedicare Exports are made of PMMA with UV absorber and sterilized using ETO. The availability in the broadest range of Diopter
Power from 10.00 - 30.00 in 0.5 diopter increments.well as minus diopter is also made to meet the needs of our customers.

Modified S loop design, Anterior Chamber Lens, Single Piece
Lens Design Model no Optic Shape Optic Diameter Length Design Feature A Constant
HE 0071 Biconvex 6.00 mm 12.50 mm No Holes 115.3
Modified C loop design, Posterior Chamber Lens, Single Piece
HE 0074 Biconvex 6.00 mm 12.50 mm 2 Holes 118.2
HE 0075 Biconvex 6.50 mm 13.00 mm No Holes 118.2
Modified C loop design, Posterior Chamber Lens, 3 Piece.
HE 0076 Biconvex 6.00 mm 12.50 mm 2 Holes 118.2
Modified C loop design, Phaco Lens, Single Piece Piece
HE 0072 Biconvex 5.25 mm 12.00 mm No Holes 118.2
HE 0073 Biconvex 5.50 mm 12.50 mm No Holes 118.2
Square Edge, Posterior Chamber Lens, Single Piece
HE 1247 Biconvex 6.00 mm 12.50 mm 2 Holes 118.2

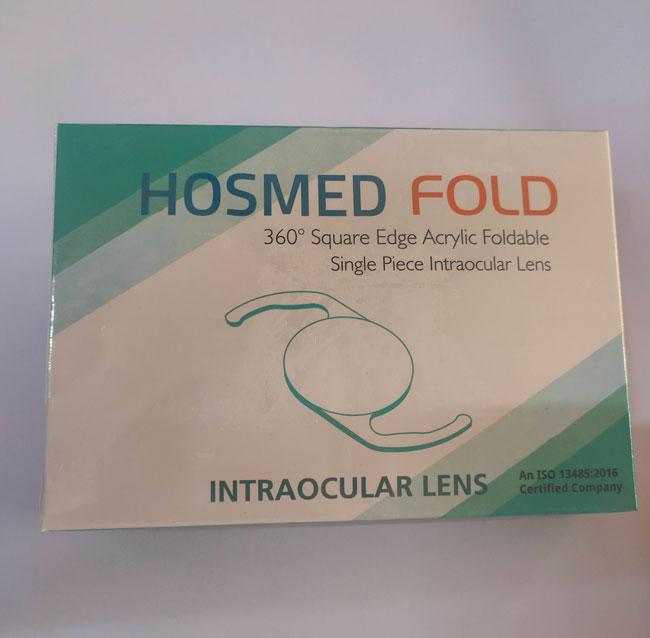

Foldable Intra Ocular Lens

Quality control: Each lens is individually checked for Power, Surface finish and dimensions to conform to our high quality standards.

A cataract is a clouding of the eye's lens. When a cataract is removed during surgery, surgeon actually removes the natural lens of eye. Then surgeon places an artificial lens into the eye. This helps it to rightly focus. Choosing the right implant can make all the difference in the world regarding the patient's visual outcome.

Implant (IOL) can provide most of the focusing power for the patient's eye. Implant materials and designs have evolved over a period of time. We offers both Spherical and Aspherical optics in Square Edge design. Our Foldable lenses are made of High Quality HEMA UV blocking Polymer material which is used by world's leading IOL lens manufacturing units.

HYDROPHILIC SINGLE PIECE FOLDABLE LENS

Nature Copolymer of hydroxy ethyl Methacrylate and Methyl Methacrylate
U. V. Blocker AEHB
Linear Expansion 1.1195 + 0.01 at 20°C
Radial Expansion 1.1161 + 0.01 at 20°C
Water content 26% at 20°C
Refractive index 1.4587 HYDRATED at 20°C
Refractive index 1.4570 HYDRATED at 35°C
Optical transmission 95%
Density 1.18g/cm HYDRATED
Tensile strength 56.86 kg/cm
Elongation to Break 279%
Sterilization Moist Heat Sterilization
Diopter 8.00 D - 14.00 D - 1.0 Diopter increment
26.00 D - 30.00 D - 1.0 Diopter increment
14.00 D - 26.00 D - 0.5 Diopter increment

LENS DELIVERY SYSTEMS

We provides the lens delivery system which work with small incision and smooth delivery of lenses into the capsular bag. Our delivery system assures about overcoming contamination and possibility of posterior chamber opacification. It also rule out possibility of postoperative infections.

FEATURES

Single piece foldable lens

The lens design ensures smooth insertion and proper centeration inside the eye.

Material is UV block incorporated ensuring adequate UV protection.

Optics are YAG Laser friendly.

Non lonic nature of material ensures resistance to deposits thus lowering the incidence of PCO.

Steam sterilization does away with the hazards of ETO residue.

SPHERICAL LENS

This is a basic type of signal piece monofocal biconvex fordable intraocular lens. This implant have a flexible optic with zero degree angulation. It is made from HEMA UV blocking material. This intraocular lens can be placed into eye through a self-sealing incision.

Lens Style : HE 0078

Optic Size : 6.0mm

Overall Length : 12.5mm
