Retinoscope
|
The retinoscope measures the refractive power of the eye. Errors of refraction, such as in short and long-sightedness, as well as astigmatism can be recognised and determined. |
 |
| Choice of XL 3.5 V xenon lamp or HL 2.5 V halogen lamp. | |
| Two models are available: | |
| The spot-light retinoscope projects a circular light beam. The slit-light retinoscope with a light beam in the form of a line, simplifies recognition and the determination of astigmatic refractive errors. The reflex in the form of a line is moved vertically to the axis across the pupils of the patient with a slight oscillating movement. The shadow moves in the same or opposite direction. | |
| Co-movement (plus lines): The patient is long-sighted. Counter-movement (minus lines): The patient is short-sighted. | |
| Simple operation with knurled thumb screw. The line and spot image can be focused with the operating element and turned 360º, angle can be read off the integrated scale. | |
| Holder for hanging and fixing the fixation card into position for dynamic retinoscopy. | |
| Two fixation cards supplied. The patient’s eye can adjust optimally to the distance to the retinoscope. | |
| Integrated eyeglass protection. | |
| Bayonet fitting for fast and secure attachment to the handle. | |
| Dust-tight, very sturdy and light casing made of impact resistant plastic. | |
| Simple exchange of the lamp at the base of the instrument head. |
Ophthalmoscope
| Premium-class direct ophthalmoscope with renowned high-performance optics and LED/Li-Ion technology. | |
| The inexpensive basic model with all the important basic functions. | |
| Diopter wheel with 29 corrective lenses Plus 1-10, 12, 15, 20, 40 Minus 1-10, 15, 20, 25, 30, 35 |
|
| Easy-to-operate aperture hand-wheel with semi-circle, small/medium/large circle fixation star, slit and red-free filter with contrast-enhancing effect | |
| Includes filter wheel engageable for all apertures with symbol display, red-free filter | |
| Optimized high-performance optics with aspherical condenser lens Parallel beam path | |
| Dust-proof | |
| The maximized model with additional focussing device and 89 single-step diopter values. | |
| Corrective lenses for 89 diopter values | |
| Plus 1-45 in single steps Minus 1-44 in single steps |
|
| Easy-to-operate aperture hand-wheel with semi-circle, small/medium/large circle, fixation star, slit and grid | |
| Includes filter wheel engageable for all apertures with symbol display, red-free filter, blue filter and polarization filter | |
| Focussing device with zero retention force for the quick correction of ametropias. | |
| Dust-proof | |

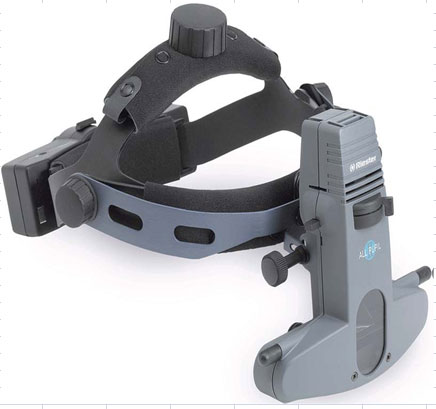

Indirect Ophthalmoscope
|
|
| High-contrast, clear src/img with the world‘s leading optics. | |
| Indirect Ophthalmoscope uses specially coated and individually laser-cut lens for best sight - every day. | |
| Light and comfortable | |
| The indirect ophthalmoscope weighs only 730 grams in the wireless version, including high-performance lithium-ion battery. It is also equipped with a especially soft and comfortable upholstered headband. | |
| Simple operating elements | |
| The indirect ophthalmoscope has a unique single control to change aperture size and position in one movement to view through all pupil sizes. | |
| IR and UV filter | |
| An IR and UV filter is integrated for the patient’s best possible protection. Easy and fast bulb replacement. Easily accessible bulbs enable rapid bulb replacement for uninterrupted work. | |
| Easy and fast bulb replacement | |
| Easily accessible xenon bulb or LED for working with as few interruptions as possible. | |
| Extraordinary adjustable light intensity even under the most difficult examination conditions, simple to adjust. | |
| Why have operating elements on the wall when the instrument is on your head! The indirect ophthalmoscope has ergonomically adjustable lighting; in addition to the xenon version available up to now, it is currently available also in an innovative and high-performance LED version that is setting the standard. | |
| LED | |
|
Brighter and whiter light for an efficient diagnosis No longer necessary to keep buying replacement lamps The LED has a life expectancy of approx. 10,000 h Upgradeable Bye-bye xenon lamp, hello LED! Cable connected or wireless power supply Indirect ophthalmoscope is available in various versions. Either with wall attachment and cable connected power supply for stationary use, as a mobile version with high-performance battery pack attached to the belt or as a completely wireless version for absolute freedom of movement without compromise. In this version a balanced Li-ion battery pack is attached to the rear of the browband . For best comfort while maintaining full lighting performance. |
|
| Wide-angle diffuser | |
| The wide-angle diffuser eliminates shadows at the edge of the lens, which enlarges the field of vision considerably. The light through the diffuser is also more pleasant for the patient. | |
 |
 |
 |
 |

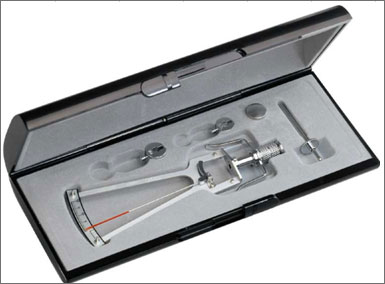

Schiotz Tonometer
| A masterpiece of precision mechanics! Highly precise eye tonometer according to Prof. Schiötz for measuring intra-ocular pressure. Its reliability and durability makes this quality measuring instrument indispensable in every ophthalmologist’s practice and eye clinic. |
| High quality agate bearing for an extremely long service life.
Precision measurement on a scale of 0 to 20 subdivisions and 0 to -1 sub-divisions. Perfect reading of the scale with red pointer. All vital parts are made of stainless steel, other parts are chrome-plated. Complete in a black deluxe case with velvet-look inserts Supplied with three weights (5.5 g, 7.5 g, 10 g) and a conversion table |

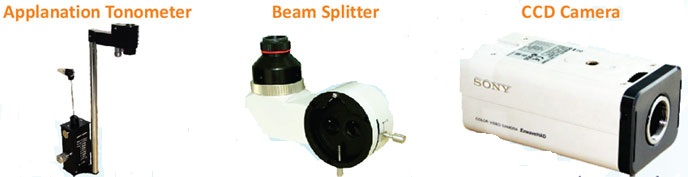

Applanation Tonometer
The Applanation Tonometers are accesories for Slit Lamps and serves to measure ocular pressure. Type OP-1H can be mounted on 2 supporting pivot on top of the binocular microscope can be mounted on a plate in the slit lamp biomicroscope arm.
Measuring Force Generated By Leaverage Weight Installation - Pivot Top of the binocular microscope Measuring Range 0 – 80 mm Hg in 2mm increments + 0,5 mm.Hg Dimension The pneumatic face 3,06 mm Measurement Uncertainity Of the force Standard Divergence Impingement on the measuring 0.49m N< 3s < 1.5% of rated value Element Measurement 47 mm wide x 33 mm deep x 90 mm height Net weight 725 g (without accessories)
Tonopen
|
| Advanced Technology for Accuracy and Repeatability |
| The Tono-Pen tonometer utilizes micro strain gage technology and a 1.0 mm transducer tip. Leading Edge recognition software ensures that measurements are taken only at applanation, while ScanLock tracking rapidly scans the electronic measurement data at a rate of 500 samples per second. This advanced microprocessor technology produces objective IOP measurements that are less influenced by operator bias than Goldmann tonometry. The average of four independent readings, combined with a statistical confidence index, ensure accurate, repeatable, and reliable tonometry results. |
| Easy to Use |
| The Tono-Pen tonometer functions in any orientation, making it ideal to use on all of your patients including those in beds or wheelchairs. The device activates with the push of a button and results are displayed clearly on the easy-to-read LCD screen. Patients will appreciate the quick and gentle measurement process. |
| Clinically Trusted |
| Clinicians worldwide have made the Tono-Pen tonometer a trusted part of their practice for nearly two decades. The proven reliability of the device allows operators to take IOP measurements confidently anytime, anywhere, and in any position. |
| Tono-Pen Carry case 150 individually wrapped Ocu-Film + tip covers One package of four Ocu-Cel Batteries Weight: 2.1 oz (59.4 g) Length: 7.25 in. (18.4 cm) Width: 1 in. (2.5 cm) Thickness: 0.875 in. (2.2 cm) Transducer: Micro Strain Gauge Measurement Range: 5 - 80 mmHg Power Source: 2 Ocu-Cel batterie |
| PEN TYPE HAND HELD TONOMETER, BOTH SIDE LCD DISPLAY |
|
| Accurate and Easy to Use |
| The TONO-PEN is designed to help eliminate operator error and functions in any position, making it ideal to use on all your patients, including those in beds or wheelchairs. Activated by the push of a button, the IOP measurement is displayed on two large, easy-to-read, LCD screens. Patients will appreciate the quick and gentle measurement process. |
| Intelligent |
| The TONO-PEN utilizes micro strain gauge technology and a 1.0mm transducer tip. The device displays the average of 10 independent readings along with a statistical confidence indicator, ensuring accurate, repeatable, and reliable tonometry results. |
|
Tono-Pen Carrying case 150 individually wrapped Ocu-Film + tip covers Tono-Pen Powercel Battery Weight: 2.4oz. (71 g) Length: 6.25 in. (16 cm) Width: 0.75 in. (2 cm) Thickness: 1.75 in. (4.4 cm) Transducer: Micro Stain Gauge Measurement Range: 5-55 mmHg Power Source: Tono-Pen AVIA Powercel Battery Pack |
| Non-Contact Tonometer |
| Portable Non-Contact Tonometer |
|
| Compact, lightweight design
Automatic measurement
Soft puff for enhanced patient comfort LCD display shows 3 IOP measurements and average for each eye Measurements can be printed using the wireless printer interface Comes complete with: Charging base Wireless printer Custom designed carrying case Weight: (unpacked) 2.7 lbs., 1.26 kg (measurement head) Height: 10 .in (25.4 cm) Width: 5 in. (12.7 cm) Depth: 8 in. (20.5 cm) Power: 100 - 240V - 50/60 Hz Measurement Range: 0 - 60 mmHg (7 - 60 mmHg ISO 8612 tonometer standard) |
| Auto Non-Contact Tonometer |
|
| Features: |
| Alignment is completely automated, no need for joysticks • No chinrest or elevation controls necessary - patients simply lean against the forehead rest - Easy-to-use, touch screen user interface • One-touch, single or multiple-measurement mode • Clearly displays all measurement data • EMR connectivity via USB port • Internal printer simplifies record keeping • Weight: 23 lbs., 10.4 kg • Height: 19.75 in., 50.2 cm • Width: 10.5 in., 26.7 cm • Depth: 14 in., 35.6 cm • Voltage: 100 - 240 VAC • Frequency: 50/60 Hz • Measurement Range: 0 - 60 mmHg (7 - 60 mmHg ISO 8612 tonometer standard) |
| AUTO NON-CONTACT TONOMETER W CORNEAL RESPONSE ANALYSIS |
|
| Easy-to-use, touch screen interface Patients simply lean against the forehead rest Alignment is completely automated One-touch, triple measurement mode Clearly displays all measurement data Internal printer simplifies record keeping Electronic data transfer via USB port Optional Chinrest Weight: 23 lbs., 10.4 kg Height: 19.75 in., 50.2 cm Width: 10.5 in., 26.7 cm Depth: 14 in., 35.6 cm Voltage: 100-240 VAC Frequency: 50/60 Hz Measurement Range: 0 - 60 mmHg (7 - 60 mmHg ISO 8612 tonometer standard) |
Diagnostic Lenses Laser lenses and Gonioscope
|
|
| Hospimedicare Exports Bringing an exclusive range of lens . | |
| 15D Lens (Clear / Laser Coated) | Pan Retinal 2.2 Lens (Clear / Laser Coated) |
|
|
| 20D Lens (Clear / Laser Coated) | 28D Lens (Clear / Laser Coated) |
|
|
| 30D Lens (Clear / Laser Coated) | 78D Lens (Clear / Laser Coated) |
|
|
| Fundus Laser Lens | Four Mirror Gonioscope Lens |
|
|
| 90D Lens (Clear / Laser Coated) | |
 |
|
Keratometer
| Technical Specifications:- | ||
|
Type:- Measuring System:- Ocular:- Measuring range:- Focusing distance:- Illumination:- Dimensions:- |
Precise measurements of the corneal radius of curvature and accurate measurements of the radius of curvature of contact lens. Bausch and LombExternal reading 15x Wide angle piece Radius of curvature: 9.4 ~ 6.4mm (in 0.05 mm steps) Diopter: 36~ 52D (in 0.25D steps) Astigmatic axis: 0°180° (in 5° steps) 76mm Fluorescent lamp 6w 16"(H) * 7"(W) *19"(L) |
|
Synoptophore
 |
|
| Simultaneous perception, fusion, stereopsis, vergence, retinal correspondence, monocular position, single eye fixation examination, removal of suppression, strengthened fusion, eyeball exercise and correction of retina. | |
| Specifications | |
| Pupil Adjusting Distance | Hemispherical projection perimeter |
| Chinrest Height (from eyepiece tube) | 90 degrees (temporal) / 70 degrees (superior/inferior) |
| Slides | 300 mm (spherical radius) |
| Automatic Flashing Device | 31.5 asb |
| Manual Flashing Device | 1000asb |
| Stepless Diaphragm | Variable in 4 steps at 0.0315, 0.10, 0.315 and 1.00 |
| Haidinger’s brushes’ device | 1/16, 1/4, 1, 4, 16 and 64 mm2 |
| Target Illuminating Lamp | 0 to 2,000 asb |
| After Image Lamp | 6V, 4.35A (stimulus) |
| Power | 100VA |
| Power Consumption | See below |
| Fuse | 41 kg (main unit only) |
| Weight | 41 kg (main unit only) |
| Half Mirror Heads | 41 kg (main unit only) |
| Slides Complete 13 Sets | |
| Simultaneous perception Red Bind 3 Sets | |
| Fusion White Bind 4 Sets | |
| W1.2 Rabbit 11°S | |
| W3.4 Elephant 6°S | |
| W5.6 Bear 7°S | |
| W7.8 Bubble Car 4°V 8°H | |
| Stereopsis Yellow Bind 3 Sets | |
| Y1.2 Wicket, Ball 10°V 3°H | |
| Y3.4 Seal, Balanced Balls 6°V 5°H | |
| Y5.6 Airplane and Four Parachutes 17°V 15°H | |
| Maddox Green Bind 2 Sets | |
| G1 Red Circle 3.5°Ø | G2 Green Square 6.5°S |
| G3 γ Angle | G4 Arrow |
| Special Blue Bind 1 Set | |
| B1 | B2 |
| After Image (Vertical Lines) | After Image (Horizontal Lines) |

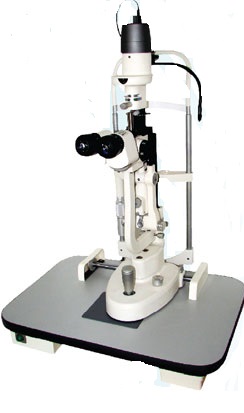

SLIT LAMP
| 5 Step Magnification | ||
| MICROSCOPE | 5 step magnification |  |
| Type | Galilean magnification, 13 degree binocular tube with converging optics | |
| Magnification Style | Revolving Drum | |
| Magnification Ratio | 6X, 10X, 16X, 25X, 40X | |
| Stereo Angle | 13 Degree | |
| Eyepiece | 12.5X | |
| PD Adjustment | 55mm~78.5mm | |
| ILLUMINATION | ||
| Slit Width | Continuous from 0mm to 14mm (at 14mm, slit becomes a circle) | |
| Slit Height | Continuous from 1mm to 14mm (at 14mm, slit becomes a circle) | |
| Slit Angle | 0 to 180 degree with horizontal scanning capability | |
| Aperture Diameters | 14mm, 10mm, 5mm, 3mm, 2mm, 1mm, 0.2mm | |
| Filter | Heat-absorbing, UV, Cobalt Blue, Red Free | |
| Slit Inclination | 5 Degree, 10 Degree, 15 Degree, 20 Degree | |
| Illumination bulb | 6V, 20W halogen bulb | |
| BASE | ||
| Longitudinal | 90mm | |
| Lateral Movement | 100mm | |
| Fine Base Movement | 15mm | |
| Vertical Movement | 30mm | |
| CHINREST | ||
| Vertical Movement | 80mm | |
| Fixation bulb | Green Led | |
| POWER | ||
| Power Supply | 100-120V, 220-240V AC | |
| Frequency | 50/60Hz | |
| Power Consumption | 30VA | |
| Accessories | ||
 |
||
| 2 Step Magnification | ||
| Eye Pieces:- | 10X and 15X |  |
| Objectives:- | 1X, 1.6X | |
| Total Magnification:- | 10X, 1.6X and 24X | |
| I.P.D:- | 52mm to 90mm | |
| Illumination Unit | ||
| Slit image rotation:- | 0° to 180° | |
| Tilting Illumination:- | 5°,10°, 15°, 20° | |
| Bfilter Disc:- | Cobalt Blue, Green and Yellow filter, Two open apertures | |
| Slit Diaphragm Disc:- | Six apertures of 12,10,6,4,3, 1, and 0.2 min Wedge-shaped diaphragm for infinitely variable slit lengths. | |
| Up and down control:- | diaphragm for infinitely variable slit lengths. | |
| Halogen Lamp preformed:- | Co-axial with joystick control | |
| Standard Accessories:- | 12V, 50w Dust Cover, Reflecting Mirror, One Spare Bulb, Focusing Rod, Hruby Lens, Fixation Lamp, Mechanical Table | |

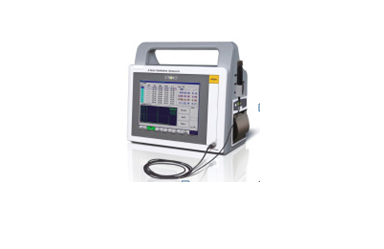

A-Scan/Pachymeter/A-Scan & Pachymeter Combine
| Large color liquid-crystal Touch screen input, easy operation Curve freezing: Manual /Auto mode, controlled by pedal Built-in speed thermal printer.Either combination unit (A+P) or single (A or P) |
|
| A-Scan | |
| A Scan : With macular recognition function, can accurately measure axial length, anterior chamber depth, lens thickness, as well as intra-ocular lens calculation. | |
|
A-Scan probe: 10MHz import small size probe, Built-in luminotron Measuring range:15mm-40mm Measurement precision:: ±0. 05mm; with macula Lutea trace function Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average Method of measurement: immersion and contact Eye mode: Phakic/ Aphakic/ Dense /various IOL IOL formula: SRK-II, SRK-T, BINKHORST-II, HOLLADAY, HOFFER-Q, HAIGIS Enter the name & ID: easy to check archive Storage: 10 cases, 5 reading each case Output:A scan waveform and IOL calculation sheet |
|
| Pachymeter | |
| Pachymeter : With the central area and the peripheral areas gain automatic compensation capability, accurate measurement of central and peripheral corneal thickness, is widely used in the preoperative effect evaluation of refractive surgery. | |
| Pachymeter probe: 20MHz, angle of 45 degrees makes easier operation Resolution: 5μm Measuring range: 150μm-1500μm Display: SINGLE mode and MAP mode Can display ultrasound waveform when measuring Each group is the average of 20 measurements Switch between IOP measured value and actual value Can input name, ID and operator’s name. |
|
| A-Scan & Pachymeter Combine | |
| A-Scan & Pachymeter Combine : All function are as above. | |

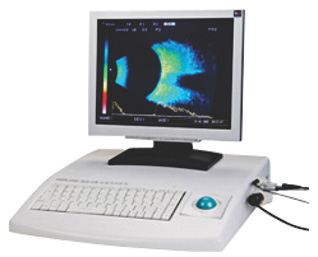

| OPHTHALMIC A/B SCAN TOUCH SCREEN | |
| Advanced technique, powerful functions, it can meet different clients’ demands. is a multifunctional, affordable, high cost performance product due to its storage of 8 frames of src/img, its 4 kinds of display mode and its competitive price. Technology enlarge our scope. Digital signal Can connect with video copying-press or workstation, more convenient. Image grey achieves 256 shades; fine definition; the image signal with strong anti-interference capacity. Can analyze, measure, calculate, compare ,amplify or minify image, also the src/img can be saved forever in computer. Eye mode: NORMAL/ DENSE/ APHAKIC/ PMMA/ SILICON/ ACRYLIC Curve freeze: manual and auto recognition freeze |
|
| Output : - | |
| A Scan | B Scan |
| SPECIFICATIONS - A Scan | |
| Probe : 10MHz solid probe,inner luminated Precision : 0.04 mm Range(AL) : 0mm-40mm Gain : 30dB-105dB Measure range : Anterior chamber, lens, vitreous, length, auto calculate, their average and analysis statistic IOL Formula : SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS Curve freeze : Manual and auto recognition freeze |
 |
| SPECIFICATIONS - B Scan | |
| Probe : 10MHz Magnetic driven noiseless Resolution : Lateral _0.2mmVertical_0.4mm Depth : 0mm-60mm Angle : 53° Gray scale : 256 shades Display mode : B/B+A/B+B Measure method : Double cursor distance measure |
 |
| A/B SCAN | |
 |
|
| FEATURES | |
| 8 Pseudo-color Mode High Resolution src/img Imaging Mode: B, B+A, B+B, A Memory: up to 8 src/img Zoom: from 34 ~ 60mm, 6 steps adjustable Variable Displaying Area 5 Segments Adjustable TGC Cineloop for 5.6sec Accurate Axial Measurement under B-mode Manual Correction of Axial Measurement under A-mode Multi-groups of Calipers for Distance Measurement Various Area Measurement Method Measuring Mode: Contact and Immersion Save up to 50 Groups of IOL Calculation Results 8 Groups’ Average with Standard Deviation (S.D.) High Resolution Large Screen LCD Monitor B-Probe Protection: Hibernation after 10 minutes of Continuous Scanning Trackball for Easy Measurement and Operation Real-time Clock Optional Image Output: Video Printer or Workstation |
|
| SPECIFICATIONS | |
| B-SCAN | |
| Probe Frequency: 10MHz Scanning Angle: 53° Resolution: axial≤0.2mm, lateral≤ 0.4mm Zoom: 34mm ~ 60mm, 6 steps adjustable TGC: -30dB ~ 0dB dynamic, 6 points manually adjustable Dynamic Replay for 5.6 sec, 56 src/img displayed continuously or separately Variable Delay Depth: 0 ~ 15 mm Multi-groups of Electronic Calipers for Distance Measurement Various Area Measurement Methods Post Processing: 4 groups of curves (Liner, Logarithmic, Exponential, S-curve) Total Gain: ≥98dB, adjustable Gray Scale: 256 levels |
|
| A-SCAN | |
| Probe: 10MHz with Fixation Red Light Resolution: 0.01mm Biometry Accuracy: ≤±0.06mm Gain: ≥98dB with an adjustable range of 0 ~ 59dB Measuring Range: 15 ~ 39mm Measuring Parameters: Anterior Chamber Depth, Lens Thickness, Vitreous Length and Axial Length. 5 Different Measuring Modes: Automatic (for Normal, Dense Cataract, Aphakic and Pseudo-aphakic) & Manual 8 Groups’ average with Standard Deviation (S.D.) IOL Formula: SRK/T, SRK-II, BINKHOST-II, HOLLADAY, HOFFER-Q and HAIGIS Save up to 50 groups of IOL calculation results and 4 groups of IOL constants |
|
| OTHERS | |
| AC 100 ~ 240V, 50/60Hz Weight: 6Kg without LCD screen Dimension: 460 x 420 x 80 mm |
|
| Portable B-SCAN | |
 |
|
| B Scan uses the most advanced ultrasound technology available. This is a self- contained, portable, multiple mode ultrasound imaging system. When interfaced with virtually any computer* via a USB 2.0 port, the B Scan produces high quality src/img at a very affordable price. | |
| The user friendly and intuitive software is quick and easy. The B Scan user can rapidly obtain high resolution video loops and still src/img with clear, sharp details. Post processing of the src/img includes playback, gain adjustment, contrast and image intensity variation, zoom without distortion, and distance measurements with dual digital calipers. All these features help provide a better diagnosis and improve the quality of patient care. | |
| The B Scan exclusive report creation system effectively documents all patient exams. A single click enables a report template software program to create, edit, and save reports with src/img, patient information, diagnosis, and comments. | |
| Each B Scan is delivered in a protective, custom die cut carrying case with a probe holder, a CD which includes installation software and a complete operating manual, a quick start guide, and coupling gel. | |
 |
|
| Features | |
| Portable, affordable full function B-Scan | |
| Probe design is cutting edge. Signal processing in hand piece and digital data transfer results in clear, sharp src/img. High resolution src/img with over 2000 samples per line; 0.015 mm inherent electronic resolution. Zoom control enhances diagnostic capability. src/img can be enlarged while maintaining high, undistorted resolution. Exclusive toolbar is very intuitive and user-friendly. It has separate icons for initiating new exams, capturing screen snapshots, creating reports, or reviewing exams. Post processing of src/img for optimal diagnostic capability: TGC controls; near, mid, and far ranges, and contrast and image intensity controls. Unique report generation templatesimplifies the documentation of exams. Documents can be printed, or transferred via paperless office or email. Electronic measurement capability with dual digital calipers. Measurements are repeatable to greater than 99% accuracy for purposes of chronological comparison. Predefined, custom scan settings based on the image being obtained can be saved for later recall. Adjustable probe pulse power improves ultrasonic penetration capability. Full motion video loops for seamlessly viewing real-time and captured screen scans. Patient based file storage is virtually unlimited, limited only by your hardware. Quick and simple to use software is intuitive and user-friendly. Using the four page quick start guide, you can begin taking B-scans in minutes without struggling with a cumbersome operating manual. Free software updates protect your investment; no need to worry about paying for the latest software |
|
| Technical Specifications | |
| Sector Scan Angle: 60 degrees Resolution: Electronic, 0.015 mm; Clinical, <0.1 mm Gray Scale: True 256 shades of gray Cineloop Sequence: Adjustable to 512 frames or 34 seconds Interface: Standard USB 2.0 Transducer Frequency: 12 MHz and 15 MHz Depth Selections: 3 cm, 6 cm (12 MHz); 5 cm, 10 cm (15 MHz) *Computer not included |
|
| Physical Specifications | |
| Probe Size: Length 7.0(17.8 cm) x Diameter 1.25(3.2 cm) Probe Weight: 6 ounces (170 grams) Cable Length/Connector: 6 feet (1.83m) / USB Computer requirements: Windows (XP, Vista, 7 or 8) operating system with one available USB 2.0 port; |
|
| PACHYMETER | |
 |
|
| The Pachymeter provides fast, accurate and repeatable CCT measurements by using advanced signal processing and custom data algorithms. The intuitive user interface, accessed through a single 5-way button, makes setup easy. You can customize the color display to show IOP correction, standard deviation and L/R or OD/OS notation in seconds. With your pre-programmed user settings, exams become more efficient for you and more comfortable for your patients. | |
| Pachymeter Features: | |
| Bluetooth Wireless Connectivity- Send measurement data directly to your EMR system or Bluetooth compatible printer. One Button Control - All functions are easily accessed through a single, 5-way control button. Rotating Color LCD - Large, easy to read display automatically rotates to any viewing orientation. Advanced Battery Technology - Rechargeable lithium ion battery keeps the Pachymeter ready to use. Power-up with the USB cable (included) or Charging Cradle (optional). Intuitive User Interface - Easy set-up allows you to quickly customize personal performance needs. Ergonomic Design - Lightweight, balanced design fits comfortably in your hand. |
|
| Specifications | |
| Measurement Range: 200 - 1000 microns Accuracy: +/- 5 microns Resolution: 1 micron Dimensions: 6.69 in. L x 1.77 in. W (17 cm L x 4.5 cm W) Weight: 3.53 oz (100 g) Power: Lithium Ion Battery; |
|
Retina Camera
| Mydriatic Retinal Camera | |
| The mydriatic retinal cameras incorporate the latest digital-ready features to provide the most complete retinal image capture device today, including color, red free, fluorescein angiography, fundus auto fluorescein and indocyanine green angiography. | |
| Color fundus, red-free, and fluorescein (ICG and autoflourescence filters are available). Can support a variety of photo devices, from film to high resolution digital cameras. Easy-to-use touch-screen control panel. 50°, 35°, and 20° angles of coverage. Small pupil mode and aperture adjustment. 21 levels of flash intensity. Comfortable backlit panel for use in darkened environments. |
 |
| Non- Mydriatic Retinal Camera | |
| The Non-Mydriatic Retinal Camera combines ease of use with superior image quality. A new all-in-one design features a built-in 8 megapixel CCD camera. The Non-Mydriatic Retinal Camera incorporates auto focus, auto exposure and auto capture for added operator convenience! Direct printout to a digital printer without the need for an external computer adds to the instrument's portability. The Non-Mydriatic Retinal Camera can be connected software for advanced image analysis. | |
| Auto focus, auto exposure and auto capture 8 megapixel CCD camera for superior image quality All-in-one design Direct printout Auto small pupil detection (3.3mm) Lower flash intensity |
 |
Specular Microscope
 |
The Specular Microscope incorporates innovative features and software that make it easy to use and more versatile. The Specular Microscope features a dual measuring system that captures both endothelial cell density and corneal thickness measurement (pachymetry). It can operate as a standalone instrument or connected to a PC computer by using the included software package. |
| Key Features |
| Complete cell anlaysis software included: endothelial cell density, cell size (min., max., and aver.), corneal thickness, % hexonality, SD (standard deviation), CV (coefficient of variation) and color histogram 3-D auto alignment & auto capture. 5 Built-in fixation targets Central, nasal, temporal, superior and inferior Non-contact measuring system Color LCD screen Photographic area is 0.2mm x 0.5mm Printer optional |
Visual Field Analyzer (Auto Perimeter)
 |
|
| Kinetic and Static Testing | |
| Five Goldmann stimuli sizes are included, as well as adjustable stimuli velocity with silent operation, make static testing easily performed even during the most challenging patient exam. Each test utilizes a thresholding algorithm for faster exam time with accurate results. | |
| Four Stimuli Colors | |
| The PC based system offers white, blue, red, green stimuli on white or yellow backgrounds. The standard blue on yellow (SWAP) strategy method is also included. Red may be utilized for diagnosis of toxic vision losses. | |
| Analysis Tools | |
| A wide range of analysis tools are available including a variety of graphs, binocular capabilities, Bebie curve, patient condition, screening, threshold, 3-zone, pattern deviation and many more. | |
| Video Monitoring | |
| The built in digital camera monitors the eye movement while positioning the patient and during the exam. The continuous fixation tracks the patient's pupil, even after the patient loses fixation, using the blind spot attraction mechanism. Using the built-in maps, exams are made simple. Depending on the preferred areas to test, custom layouts are available. | |
| Software Options | |
| The PC based software with a MS Windows system has a simple, intuitive user interface with powerful analysis tools and an advanced, fast precise threshold algorithm. Other features include the extended comparison module, Printout Manager and customizing settings. | |
| Printout Manager | |
| The Printout Manager module has the benefit to use a predefined template or custom printouts, depending on your organization needs. The custom option may vary from choosing the content to the layout style. | |
| Printers and Projectors | |
| If your imaging requirements include color or black-and-white prints in a variety of sizes, Canon printers offer the terrific blend of print quality, ease-of-use, speed, and cost-effective operation. For teaching facilities and conference rooms, high quality projectors provide LCOS (liquid crystal on silicon) technology, which is engineered to provide exceptional color, intricate details, and easy-to-read type. | |
| General | |
| Examination bowl | 300 mm radius, closed type, ventilated |
| Tested field range | 100 deg (160 with fixation shift for drivers test) |
| Stimulus size | Goldmann Sizes I-V |
| Perimetry Technique | Static, Kinetic |
| Stimulus colors | Green LED 525 nm Red LED 625 nm Blue LED 460 nm White LED |
| Stimulus intensity | 0.03 to 10000 asb |
| Stimulus speed in kinetic perimetry | 2-10 deg/s |
| Maximum Stimulus intensity | 10000 asb |
| Fixation method | Control of blind spot position or digital detection of pupil position |
| Patient response time | Adaptive to patient speed or set manually from 0.1 to 9.9s depends on stimuli type-31.5 asb for white and red stimuli |
| Background illumination | 10 asb for green, 314 asb yellow background for blue stimuli, set automatically |
| Interface | USB |
| Maps | Full (50° in every directions) Central (30° in horizontal axis and 22° in vertical axis) Glaucoma (30° with extend up to 50° in nasal direction) Peripheral (from 30° to 50°) Macula (up to 10°) Extended (special field for drivers examination – 50° in nasal direction; 80° in temporal direction) Fast (up to 30° with scarce points) Binocular Drivers Test (up to 80° in horizontal axis, up to 50° in vertical axis) User (up to 50° user defined) |
| Strategies | Screening Threshold 3-zone Fast threshold BSV (Binocular Single Vision) Spatial Sensitivity Flicker (Critical Fusion Frequency) Blue On Yellow (SWAP) BDT (Binocular Drivers Test) Reduced field option Neurological defects option |
| Result maps | Hill of vision deviation Age norm deviation Defects progress analysis Defect Probability Graph Pupil Movement Graph Results comparison Bebie curve 3D visualization of patients HOV |
| System Requirements | |
| Processor | Intel 1600 MHz |
| RAM | 256 MB |
| Hard Disk | 50 MB free space |
| Graphics Card | 800 x 600, 24 bits of color depth (True color), 3D accelerator supporting OpenGL |
| Operating System | Windows® XP Pro Windows® Vista Business Edition |
| CD-ROM | 4x |
| Communication Socket | 1 x USB 1.1 |
| Electrical and Environmental | |
| Operating Voltage | 100-250V 50-60Hz |
| Operating Environment | Temperature: 10°C to 40°C Humidity: 60% RH to 80% RH |
| Physical Characteristics | |
| Dimensions (H x W x D) | 27.3 inches x 23 inches x 17.4 inches (693 mm x 585 mm x 444 mm) |
| Weight | 41.8 pounds |
Optical Coherence Tomography (OCT)
 |
The OCT delivers a new standard of clinical utility by combining a high resolution fundus camera for color, red free, FA, FAF imaging. Superior scanning speed (50,000 A Scans/sec), advanced 3D volumetric layer detection, noise reduction software, a comprehensive array of interactive reports and clinical application modules make the one of the most versatile and economical spectral domain OCTs available. |
| Key Features |
| Integrated, high resolution camera for capturing fundus images 50,000 A Scans/second Advanced 3D volumetric layer detection algorithms Software enables dynamic viewing of 2D, 3D and fundus images simultaneously Embedded touch-screen for quick and easy navigation Automated image acquisition process (auto-focus, auto-shoot) Auto disc and fovea centering of OCT image Seamless integration with Synergy 4 in 1 system is space-saving and economical Compare function allows for serial monitoring of OCT images |
